Annke 4K PoE Video Surveillance System 8 Channel NVR
Annke 4K PoE Video Surveillance System 8 Channel NVR
Couldn't load pickup availability

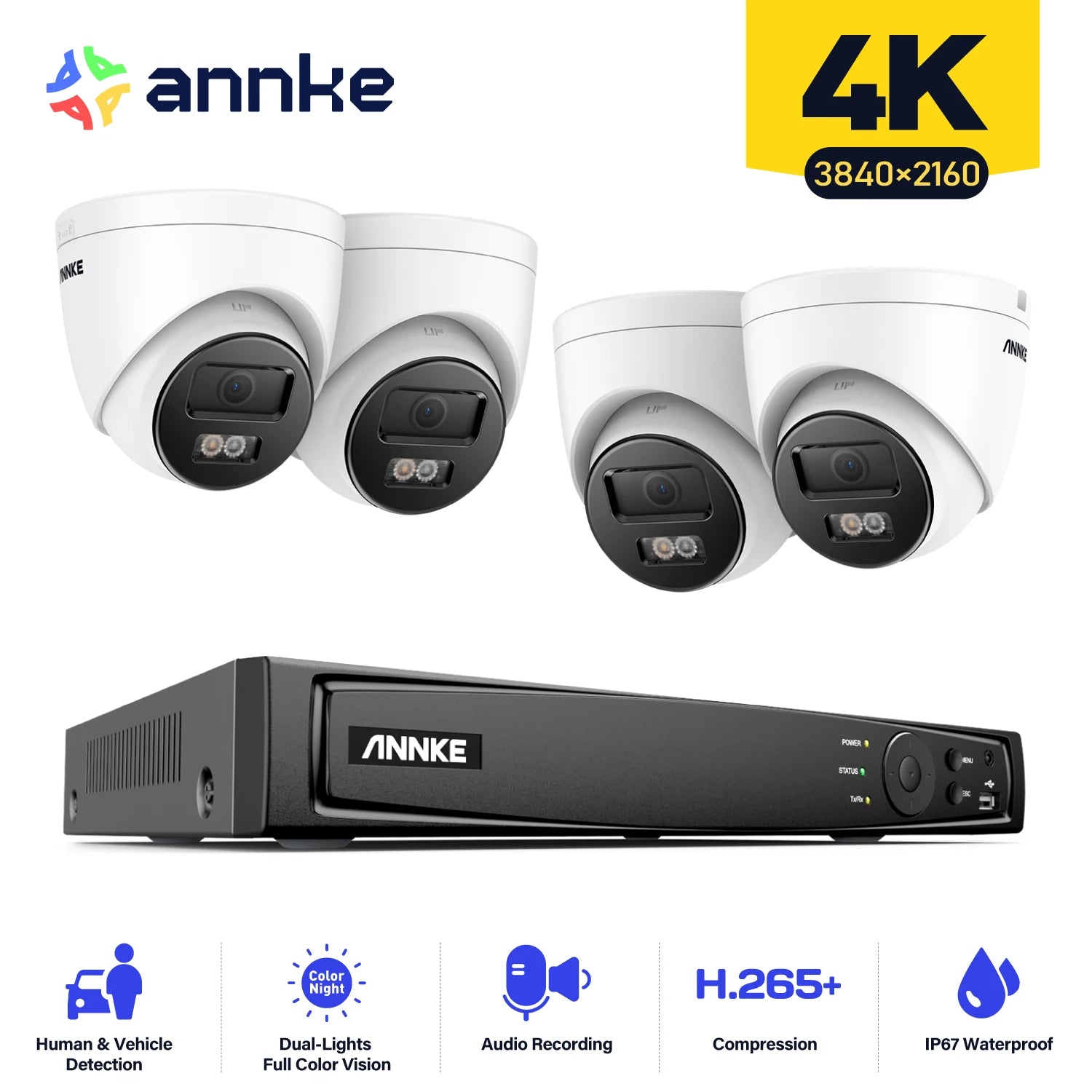

Experience 4K security you can rely on with an 8-channel PoE NVR and 4K-ready cameras.
- 8MP real-time live viewing and recording with playback up to 8MP, plus HDMI output up to 4K for crisp, on-display monitoring.
- Connect up to 8 IP cameras via built-in PoE inputs, simplifying wiring and centralized management.
- Efficient H.265+ compression lowers bandwidth and storage needs, helping you extend recording time without sacrificing 4K image quality.
- Smart features plus remote access: dual-light night vision, motion-triggered white light, 120 dB WDR, built-in mic, SD card storage up to 512 GB, customizable motion zones, and ANNKE Vision app with HomeKit/Home Assistant compatibility; IP67-rated cameras enable 24/7 monitoring.
NVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K, VGA up to 1080p |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 M |
|
Max Recording Resolution |
Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
|
ONVIF Protocols |
Support |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
Human and vehicle targets detection(Need IP camera support) |
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|
8MP IP Camera | ||
Camera |
Image Sensor |
1/2.4" Progressive Scan CMOS |
Max resolution |
3840*2160(8MP) |
|
Main Stream |
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Substream |
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
4 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
IR: up to 30 m, white Light: up to 20 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
API |
Open Network Video Interface Version (Profile S, Profile T, Profile G) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
Ø110 mm × 89.2 mm (Ø4.3" × 3.5") |
|
Weight |
0.7 lb./340 g |
|
